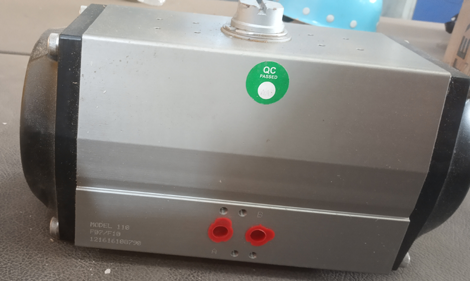

SOLENOID OPERATED BALL VALVE ACTUATOR

Short Description:- SOLENOID OPERATED BALL VALVE ACTUATOR
Part No:- ECF110E-15
Make:- ROTEX
Additional Specification:-
Actuator Type:- Pneumatic Single Acting Spring Return
Air Pressure:- 3 bar
Fail Safe condition:- Close
Operating Time:- 3 Sec
Manual Override:- MOR 0.5
SERVICE:-
Medium:- Nitrogen
Medium in operating condition:- Gas
Inlet Pressure:- 4-8 bar g
Outlet Pressure:- 4-8 bar g
Design Pressure:- 10 bar g
Rated Cv:- 85
Leakage Class:- Class VI
PIPELINE:-
Standard:- ANSI
Pipe Size:- Full Bore
Size:- 50 MM
Rating:- 150
Standard:- ISO 17292
End Conn.:- Flanged
Facing:- Raising face
Surf. Fin:- Standard
Material:- WCB
BONNET:-
Type:- Standard
Packing Material:- GRAPHITE
TRIM:-
Type:- Standard
Seat Diameter:- Standard
Characteristics:- Quick Open
Sealing seat:- PTFE
Disc Material:- CF8
MATERIAL:-
Stem Material:- SS304
Operating Temp:- 20-50 degC
Density Gas:- 1.25
Shut off pressure:- 8 bar g
Noise level(Max):- <85 dB
Hazardous Area Class:- Exd IIB T4
Fail Position:- Closed 3/2 Type, 24V DC solenoid Valve operated, 2 nos Micro switch type of 230V AC, 2A rating, mounting at Exproof junction box
Custom Clarification:-
Item Description
SOLENOID OPERATED BALL VALVE ACTUATOR
Function of the Item
Open or Close the Valve
Material of Construction of the Item
Aluminium and Electronics components
Name of the Main Equipment where the Item is Used
Coke Oven Battery
Function of the Main Equipment & Location of the Main Equipment
Coke Making
