PLC HMI XBTGT 2110
8B-2016-W39, 24VDC, 0.43A
Range of Product Harmony XBTGT, Product or Component, Type - Advanced touchscreen panel, Display Type- Backlit monochrome STN LCD
Display colour -Blue and white 16 levels of grey display resolution 320 x 240 pixels QVGA
display size: 5.7 inch, Software Type: Configuration software, Software Designation: Vijeo Designer operating system Harmony, Processor name: CPU RISC Processor frequency: 133 MHz, Memory description: 128 kB SRAM back up of data lithium battery 16 MB flash EPROM application memory
Integrated connection type: Male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s removable screw terminal block power supply USB type A master port (V1.1) Modicon M340 terminal port communication RJ45 COM2 serial link RS485 <= 187.5 kbit/s, Resistance to electrostatic discharge 6 kV IEC 61000-4-2 level 3, Cut-out dimensions: 156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm, Complementary Touch sensitive zone: 1024 x 1024, Touch panel: Analogue, Backlight lifespan: 58000 hours, Brightness: 8 levels via touch panel, Contrast: 8 levels via touch panel Character font- Taiwanese (traditional Chinese) ASCII (European characters) Japanese (ANK, Kanji) Korean Chinese (simplified Chinese) [Us] rated supply voltage 24 V DC Supply, External source Supply voltage limits 19.2
28.8 V Inrush current 30 A power consumption in W 18 W
Make- Schneider

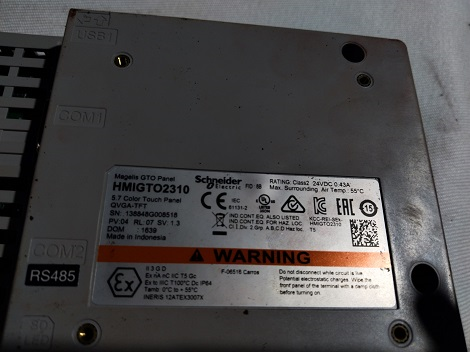

Part Number- Magelis GTO Panel HMIGTO2310
Weight | 1.08 kgs |
---|---|
HSN Code | 85389000 |
Shipping Option | Self pick up |
Available for | Everyone |
Organization Name | SUDARSHAN CHEMICAL INDUSTRIES LIMITED |
Packed | Yes |
Rusted | No |
Make | Schneider electric |
