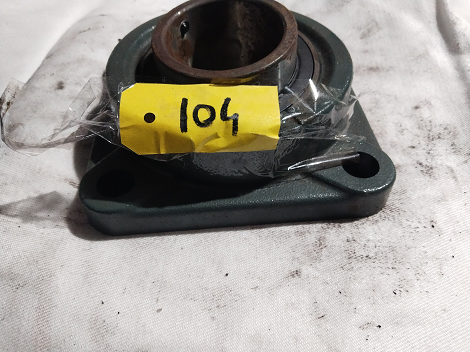

NTN Bearing pvt ltd, Part N- UCFX14D1

Part No :- UCFX14D1
NTN UC215-215 Bearing
Type: Insert Bearing with Set Screw
Bore Diameter: 75 mm (2.9528 inches)
Outer Diameter :-130 mm (5.1181 inches)
Width :- 77.8 mm (3.0630 inches)
Material :- Through Hardened Steel
Seal Type :- Contact Seal (Nitrile Rubber)
Dynamic Load Rating: 66.00 kN (14800 lbf)
Static Load Rating: 49.50 kN (11100 lbf)
Limiting Speed (Grease): 2100 RPM
Operating
Temperature Range: -40 to 120°C (-40 to 250°F)
Weight: 2.337 kg (5.152 lb)
FX14 Housing
Type :- Four Bolt Square Flanged Unit
Material: Cast Iron
Bolt Circle Diameter: 184 mm
Bolt Spacing: 130.1 mm
Locking Device: Set Screw
Seal Type: Single Lip Contact Seal
Lubrication: Relubricatable
Weight: 6.980 kg (15.388 lb)
Operating Temperature Range : -40 to 120°C (-40 to 250°F)
