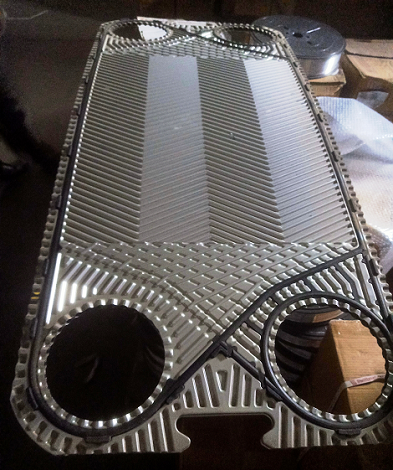

HEAT EXCHANGER PLATE -FUNKE FP 41-59
₹4,400.00
+ ₹792.00 (18% GST)
| Price Excluding Taxes | ₹4,400.00 |
| + (18% GST applicable) | ₹792.00 |
| Price Including Taxes | ₹5,192.00 |
In Stock
SKU
FA1510004159
Available Stock Quantity:
25
Is Returnable:
No
Ageing:
14 years
Unit of Measurement:
PCS
HEAT EXCHANGER PLATE -FUNKE FP 41-59
Type:- Gasketed Plate Heat Exchanger
Model:- FP 41-59
Material:- Stainless steel (AISI 316L or 1.4404)
Max Temperature:- 200°C
Max Pressure:- 25 bar
Connections:- DN 100 (Inlet/Outlet)
Heat Transfer Area:- Up to 2.4 m²
Performance Specifications
Capacity:- Up to 2300 m³/h (meters cubed per hour)
Delivery Head:- Up to 145 m (meters)
Efficiency:- High efficiency with optimized plate design
Flow Configuration:- Counterflow or parallel flow
Construction Features
Plate Design:- Optimized by CFD (Computational Fluid Dynamics) for best heat transfer
Gaskets:- EPDM, Viton, or NBR-HT for different temperature and chemical resistance
Bypass Stop System:- Minimizes bypasses for optimal heat transfer
Double Wall Plates:- Available for added safety (FPDW series)
Model:- FP 41-59
Material:- Stainless steel (AISI 316L or 1.4404)
Max Temperature:- 200°C
Max Pressure:- 25 bar
Connections:- DN 100 (Inlet/Outlet)
Heat Transfer Area:- Up to 2.4 m²
Performance Specifications
Capacity:- Up to 2300 m³/h (meters cubed per hour)
Delivery Head:- Up to 145 m (meters)
Efficiency:- High efficiency with optimized plate design
Flow Configuration:- Counterflow or parallel flow
Construction Features
Plate Design:- Optimized by CFD (Computational Fluid Dynamics) for best heat transfer
Gaskets:- EPDM, Viton, or NBR-HT for different temperature and chemical resistance
Bypass Stop System:- Minimizes bypasses for optimal heat transfer
Double Wall Plates:- Available for added safety (FPDW series)
| HSN Code | 4321 |
|---|---|
| Shipping Option | Self pick up |
| Available for | Everyone |
| Organization Name | JPFL Films Pvt Ltd |
| Packed | Yes |
| Rusted | No |
