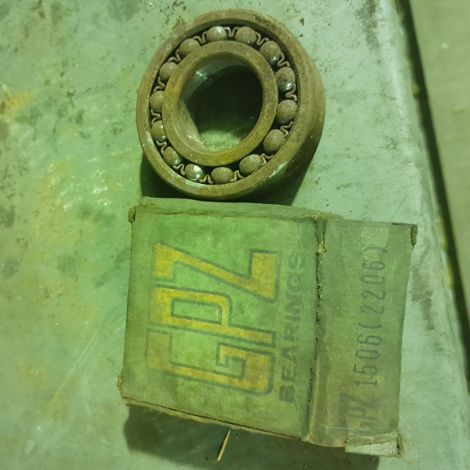

Self Aligning Ball Bearing, SKF 2206

1. Bore diameter: 30 mm
2. OutSide Diameter:62 mm
3. Width: 20 mm
4. Basic Dynamic Load Rating: 23.8 KN
5.Cage: Polyamide
6. Material: Bearing Steel
7.Sealing: Without
8. Limiting Speed: 15000 rpm
9. Operating Temperature : upto 120 Deg C
10. Type of Bearing: Self Aligning Ball Bearing
11. Description:- Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed.
Application: Self-aligning ball bearings are recommended for applications where aligning the shaft and housing is difficult or where the shaft may bend, such as with transmission shafts.e.g gear boxes/speed reducer Cereal Mills.
a)Staple machines for magazines.
b)Process pumps for refineries & power plants.
c)Luggage conveyor systems.
d)Shredders for fruit farms.
e)Industrial Fans.
f)Carton Boards.
g)Ring spinning machines for yarn production.
