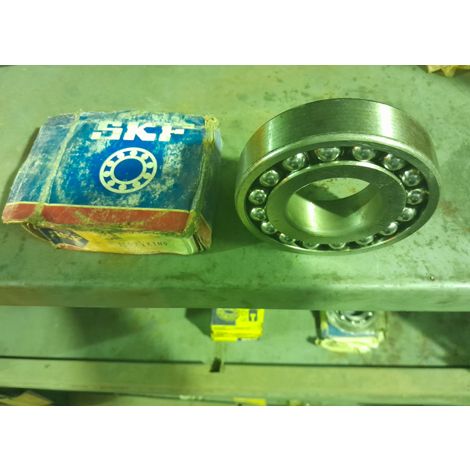

Self Aligning Ball Bearing, SKF 1309K+H309

1. Bore diameter: 45mm
2. OutSide Diameter: 100mm
3. Width: 25mm
4. Basic Dynamic Load Rating: 39KN
5.Cage: Non Metallic
6. Material: Bearing Steel
7.Sealing: Without
8. Limiting Speed: 8500rpm
9. Operating Temperature : upto 120 Deg C
10. Type of Bearing:Self Aligning Ball Bearing Double row with tapered bore
H309:-
a) Bore Diameter :- 40 mm
b)Thread designation :- M45X1.5
c)Width:- 39mm
d)Outside Diameter small taper:- 45mm
e)Outside Diameter Lock Nut :- 10mm
f) External Taper :- 1:12
11. Description:- Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed.
Application: Self-aligning ball bearings are recommended for applications where aligning the shaft and housing is difficult or where the shaft may bend, such as with transmission shafts.e.g gear boxes/speed reducer Cereal Mills.
a)Staple machines for magazines.
b)Process pumps for refineries & power plants.
c)Luggage conveyor systems.
d)Shredders for fruit farms.
e)Industrial Fans.
f)Carton Boards.
g)Ring spinning machines for yarn production.
